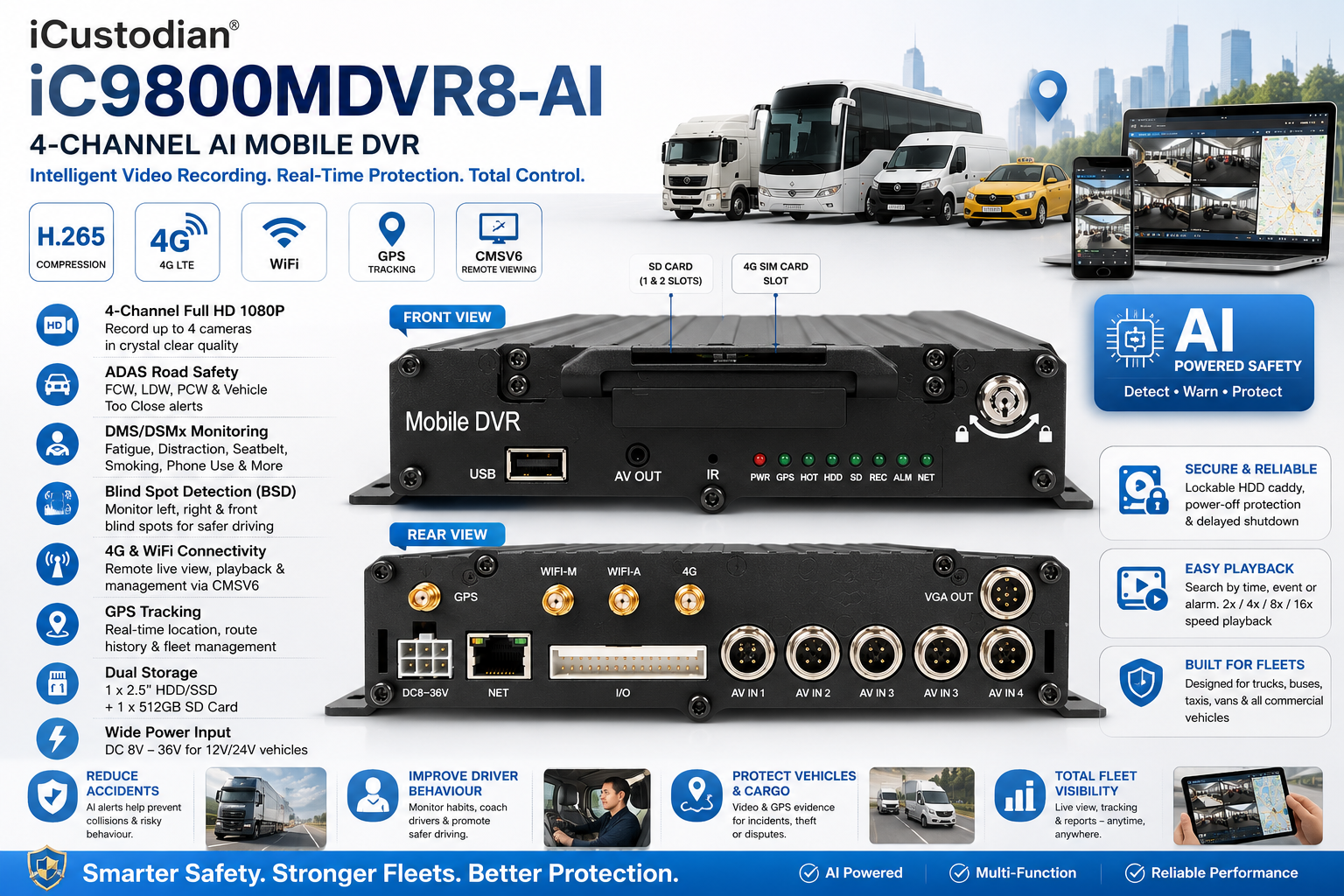

iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR

iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR - Image 2

iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR - Image 3

iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR - Image 4

iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR - Image 5

iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR

Name: iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR
SKU: 5100
Price: 249.00 GBP
Availability: InStock

Original price was: £269.00.Current price is: £249.00.

iCustodian® iC9800MDVR-AI

4-Channel AI Mobile DVR with 4G, Wi-Fi, GPS, Driver Monitoring, ADAS and Blind-Spot Detection.

iCustodian® iC9800MDVR-AI Hybrid Mobile DVR

4-Channel Vehicle CCTV Recorder with 4G, Wi-Fi, GPS, Encryption & Remote Viewing

Intelligent Vehicle CCTV That Does More Than Simply Record

The iCustodian iC9800MDVR-AI is an advanced 4-channel Mobile Digital Video Recorder designed for commercial vehicles, fleet operators and vehicle owners who require reliable video recording, remote monitoring and intelligent driver-safety features.

Unlike a standard mobile DVR that only records what happens, the iC9800MDVR8-AI can also analyse the road, monitor the driver and detect activity around vehicle blind spots. It can provide warnings when it detects potentially dangerous driving conditions or unsafe driver behaviour, helping fleet managers improve safety and investigate incidents more effectively.

The system supports up to four Full HD 1080P cameras, together with 4G, Wi-Fi and GPS connectivity. Once connected and configured with our CMSV6 remote viewing server, authorised users can monitor vehicles from a mobile phone or computer, wherever an internet connection is available.

Why Choose an AI Mobile DVR?

A traditional mobile DVR mainly records video for later review. The iCustodian iC9800MDVR8-AI adds intelligent safety monitoring that can identify risks while the vehicle is being driven.

Depending on the connected cameras and selected configuration, the AI system can monitor:

The road ahead
Lane position
Distance from the vehicle in front
Pedestrians and possible collision risks
Driver tiredness
Driver distraction
Mobile phone use
Smoking
Yawning
Closed eyes
Seat-belt use
Vehicle blind spots

This means the system does not simply provide evidence after an incident. It can also help alert the driver to potentially dangerous situations as they develop.

The AI functions are designed to support the driver and fleet operator. They do not replace careful driving, proper vehicle checks or normal road-safety procedures.

Main Features

Four-Channel Full HD Recording

Connect up to four compatible AHD vehicle cameras and record several areas at the same time.

Camera positions may include:

The recorder supports selectable recording resolutions including:

1080P
720P
D1
CIF

It can support up to four channels of 1080P recording, depending on the system configuration.

Advanced H.265 and H.264 Video Compression

The iC9800MDVR8-AI supports modern H.265 and H.264 video compression.

H.265 helps reduce video file sizes while maintaining good image quality. This allows more footage to be stored than with many older recording systems using less efficient compression.

Audio is recorded using the G711a format.

Intelligent AI Safety Features

ADAS Road-Safety Monitoring

The Advanced Driver Assistance System monitors the road ahead using a dedicated forward-facing camera.

It can support warnings for:

Forward Collision Warning

The system can detect when the vehicle may be approaching another vehicle too quickly and provide a warning.

Lane Departure Warning

The system can detect when the vehicle begins moving out of its lane without the expected lane positioning.

Pedestrian Collision Warning

The road-facing camera can help identify pedestrians ahead and warn of a possible collision risk.

Vehicle-Too-Close Warning

The system can warn when the vehicle is travelling too close to the vehicle in front.

These functions can help encourage safer following distances and more attentive driving.

DMS/DSMX Driver Monitoring

The dedicated driver-facing camera monitors the driver for behaviours that may increase the risk of an accident.

Supported detections include:

The system can provide alerts when selected behaviours are detected, helping the driver remain focused and helping fleet managers identify repeated unsafe driving habits.

Blind-Spot Detection

Large vehicles can have significant areas that are difficult for the driver to see. The optional BSD system uses external cameras to monitor selected blind spots around the vehicle.

Supported camera positions can include:

The system supports the selection of two BSD monitoring positions, depending on the installation and vehicle requirements.

Compatible BSD cameras are rated IP66 for outdoor vehicle use and can be combined with an optional audible and visual alarm.

4G and Wi-Fi Remote Viewing

The iC9800MDVR8-AI supports both 4G mobile-network connectivity and Wi-Fi connectivity, allowing the recorder to communicate with a remote monitoring platform.

Once the recorder has been correctly configured with our CMSV6 server, authorised users can remotely access vehicle information using a compatible computer, mobile phone or tablet.

Depending on the CMSV6 account, server configuration and installed equipment, remote functions may include:

Live camera viewing
Multi-camera monitoring
Remote video playback
Vehicle location viewing
GPS route history
Alarm and event monitoring
Device-status checking
Vehicle and fleet management
Remote device restart
Remote configuration and management
Video analysis and incident investigation

Remote viewing requires a suitable SIM card or Wi-Fi internet connection, correct APN and server settings, sufficient mobile data and an active CMSV6 account.

GPS Vehicle Tracking

The recorder supports integrated satellite positioning using:

GPS
BeiDou
GLONASS

When connected to CMSV6, the positioning system can help fleet operators view vehicle locations and review routes alongside recorded video.

This can be especially useful for:

The GPS antenna should be installed with a clear view towards the sky and away from metal obstruction or electronic interference.

Flexible Video Storage

The iC9800MDVR8-AI supports two storage options:

One 2.5-inch HDD or SSD
One SD card with a capacity of up to 512GB

Using both storage options provides flexible recording capacity and additional storage security.

The recorder supports automatic loop recording. When the selected storage becomes full, older standard recordings can be overwritten by newer recordings, depending on the configured recording settings.

The lockable storage compartment helps protect the installed HDD or SSD, SD card and SIM card from unauthorised access.

Power-Loss Protection and Delayed Shutdown

Sudden power loss can damage ordinary video files. The iC9800MDVR8-AI includes power-loss protection designed to help protect video data when vehicle power is interrupted.

The recorder also includes an independent delayed-shutdown circuit. This allows the unit to continue operating for a selected period after the vehicle ignition has been switched off.

The delay time can be configured according to operational requirements.

This is useful for recording activity immediately before and after the driver leaves the vehicle.

Multiple Recording Modes

The recorder supports several recording methods, including:

Recording can begin automatically when the vehicle is started, depending on the power and ACC configuration.

Easy Video Search and Playback

Recorded video can be searched by:

Date
Time
Recording type
Alarm event
Channel

The system supports synchronised multi-channel playback, allowing footage from several cameras to be reviewed together.

Playback speed options include:

2×
4×
8×
16×

Fast-forward and reverse playback are also supported.

Video can be reviewed locally using a connected monitor or through compatible CMSV6 software after the system has been configured.

USB Backup and Firmware Updates

The front USB port can be used for:

Backing up recorded video
Exporting important evidence
Importing supported driver information
Updating firmware
Performing authorised maintenance

Firmware can also be updated using an SD card or, where supported and configured, through the network.

Password-Protected Access

The recorder supports two levels of password access:

Standard User

Allows authorized users to search and view recordings without changing important system settings.

Administrator

Allows access to system menus and configuration settings.

Standard and Default administrator password will be provided after purchase.

For security, all default passwords should be changed immediately after installation.

Vehicle Alarm and Sensor Connections

The iC9800MDVR8-AI provides:

Eight alarm inputs
Two alarm outputs
Two RS232 connections
Reserved/customisable RS485 support

These connections allow the recorder to work with compatible external equipment such as:

Door sensors
Panic buttons
Reverse triggers
Brake signals
Indicator signals
RFID card readers
Fuel-level sensors
Temperature sensors
Audible alarms
Visual warning lights
Other compatible customer-supplied devices

Professional configuration may be required for external sensors and alarm devices.

Wide Vehicle Power Support

The recorder accepts a wide DC power input of:

DC 8V to 36V

This makes it suitable for many 12V and 24V vehicle electrical systems.

Built-in electrical protection includes protection against:

Overload
Overvoltage
Undervoltage
Short circuit
Reverse polarity

A suitable fuse must be installed close to the vehicle battery positive terminal. Professional vehicle installation is strongly recommended.

Clear Status Indicators

The recorder’s front panel includes status lights for:

These indicators make it easier to confirm whether the recorder, storage devices, mobile network and GPS connection are working correctly.

Local Monitor Output

The recorder provides:

One CVBS audio/video output
One VGA output

A compatible monitor can be connected for:

A monitor may be optional depending on the selected package.

On-Screen Information

The recorder supports on-screen information display, which can include:

This information can make recorded footage easier to identify during investigations.

Suitable Vehicles and Applications

The iCustodian iC9800MDVR8-AI is suitable for a wide range of commercial and specialist vehicles, including:

Benefits for Fleet Operators

Improve Driver Safety

AI warnings can help drivers recognise dangerous following distances, lane movement, tiredness and distraction.

Review Incidents More Accurately

Up to four camera views can provide a clearer understanding of what happened before, during and after an incident.

Monitor Vehicles Remotely

4G and Wi-Fi connectivity allow authorised personnel to view supported vehicle information through CMSV6.

Combine Video with Location Data

GPS information helps identify where an incident occurred and which route the vehicle travelled.

Encourage Better Driving Standards

Driver-monitoring alerts can help businesses identify repeated unsafe behaviour and provide targeted training.

Protect Drivers and Businesses

Recorded footage may help investigate complaints, insurance claims, collisions, cargo disputes and allegations.

Reduce the Limitations of Standard DVRs

A standard DVR records events. The iC9800MDVR8-AI can record, analyse, warn and remotely communicate.

Main Recorder Specifications

Operating system: Embedded Linux

Video channels: Four

Maximum supported recording: Up to four channels at 1080P

Selectable resolutions: 1080P, 720P, D1 and CIF

Video compression: H.265 and H.264

Audio channels: Four inputs and one output

Audio compression: G711a

Storage: One 2.5-inch HDD or SSD and one SD card up to 512GB

Network: 4G and Wi-Fi

Positioning: GPS, BeiDou and GLONASS

Alarm inputs: Eight

Alarm outputs: Two

Serial connections: Two RS232; reserved/customisable RS485

USB: One USB port

Monitor outputs: CVBS and VGA

Power input: DC 8V–36V

Maximum normal operating consumption: Approximately 5W, excluding connected accessories

Standby consumption: Approximately 0.5W

Operating temperature: Approximately -20°C to +70°C

Operating humidity: 20% to 80%

Recorder dimensions: 168 × 143 × 56mm

Security: Standard-user and administrator password levels

Firmware updates: SD card, USB and supported network update

Specifications may be changed as part of ongoing product development. The actual supplied product and selected package should be treated as final.

AI Camera Information

ADAS Road-Facing Camera

1280 × 720 resolution
AHD video format
Full-colour image
Approximately 52-degree horizontal field of view
Approximately 38-degree vertical field of view
PAL 25fps or NTSC 30fps
12V operation
Designed for forward-road monitoring

DMS Driver-Facing Camera

1280 × 720 resolution
AHD video format
Infrared-assisted black-and-white image
Approximately 70-degree horizontal field of view
Approximately 50-degree vertical field of view
940nm infrared filter
PAL 25fps or NTSC 30fps
12V operation
Designed to monitor the driver during daytime and low-light conditions

Bird’s-Eye BSD Camera

1280 × 720 resolution
Approximately 95-degree horizontal field of view
AHD video format
Colour and black-and-white switching
IP66 weather resistance
12V operation
Designed for front, front-right or front-left blind-spot monitoring

Horizontal BSD Camera

1280 × 720 resolution
Approximately 70-degree horizontal field of view
AHD video format
Colour and black-and-white switching
IP66 weather resistance
12V operation
Designed for side and rear blind-spot monitoring

Typical Kit Contents

Depending on the package selected, the kit may include:

Optional items may include:

Please check the exact package contents shown in the listing before purchasing.

Important Installation Information

For reliable AI detection and recording performance, the system should be installed and calibrated by a competent professional installer.

Correct installation includes:

Incorrect camera positioning or calibration may reduce the accuracy of the AI functions.

Remote Viewing Requirements

To use CMSV6 remote monitoring, you will normally require:

A compatible mobile-data SIM card or Wi-Fi connection
An active data allowance
Correct network and APN settings
A valid device ID
CMSV6 server details
A compatible CMSV6 account
Correct server IP address and port settings
Suitable mobile or desktop viewing software

Mobile-network performance and live-video quality depend on local signal strength, data speed, network availability and the mobile-network provider.

Please Note

AI alerts are driver-assistance features only. They cannot detect every possible danger and must not be relied upon as a replacement for a careful, alert and properly trained driver.

Recording, audio capture, driver monitoring, facial recognition, GPS tracking and remote surveillance may be subject to local privacy, employment and data-protection laws. The system operator is responsible for installing and using the equipment lawfully and for informing drivers, passengers and other affected persons where required.

iCustodian iC9800MDVR8-AI — Record More, See More and Protect Your Fleet with Intelligent AI Vehicle Monitoring

Upgrade from a basic vehicle recorder to a complete intelligent mobile-surveillance solution.

With Full HD multi-camera recording, driver monitoring, road-risk detection, blind-spot support, GPS tracking and remote 4G/Wi-Fi viewing through CMSV6, the iCustodian iC9800MDVR8-AI provides the visibility and control required by modern vehicle operators.

What’s Included

Please Note

This listing is for the DVR system and included accessories listed above. Cameras, hard drive, SD card, SIM card and monitor may not be included unless stated in the listing or selected as part of a bundle.

For remote viewing, you will need a working internet connection through Wi-Fi, LAN or a compatible mobile SIM card. Server hosting is available separately after the free trial period.

Need Cameras or Installation Help?

We can also supply compatible vehicle CCTV cameras, screens and cables. If you need help choosing the right cameras or setting up the system, please contact us before buying. Detailed picture installation instructions can be provided on request.

I will ship free on the same day of purchase if paid before 1PM or next day if after 2PM. Collection welcome. 07543025555 for any questions. Any question please contact me and I will be happy to respond. Please see above for all you will get. No returns please. Make sure you want this before you buy.

Contact me if you have any questions.

Usually dispatched same day

Safe & secure checkout

Category: Digital Video Recorders

Tag: DVR

Description

iCustodian® iC9800MDVR8-AI Hybrid 1080P Mobile Digital Video Recorder with Wi-Fi, 4G & GPS function 8 channel mobile car DVR with password protection, 2.5″ SATA Hard Drive Housing key lock protection and Video Encryption + Cable.

iCustodian® iC9800MDVR-AI Hybrid GPS 4G WIFI Mobile DVR

COLLECTIONS

QUICK LINKS
